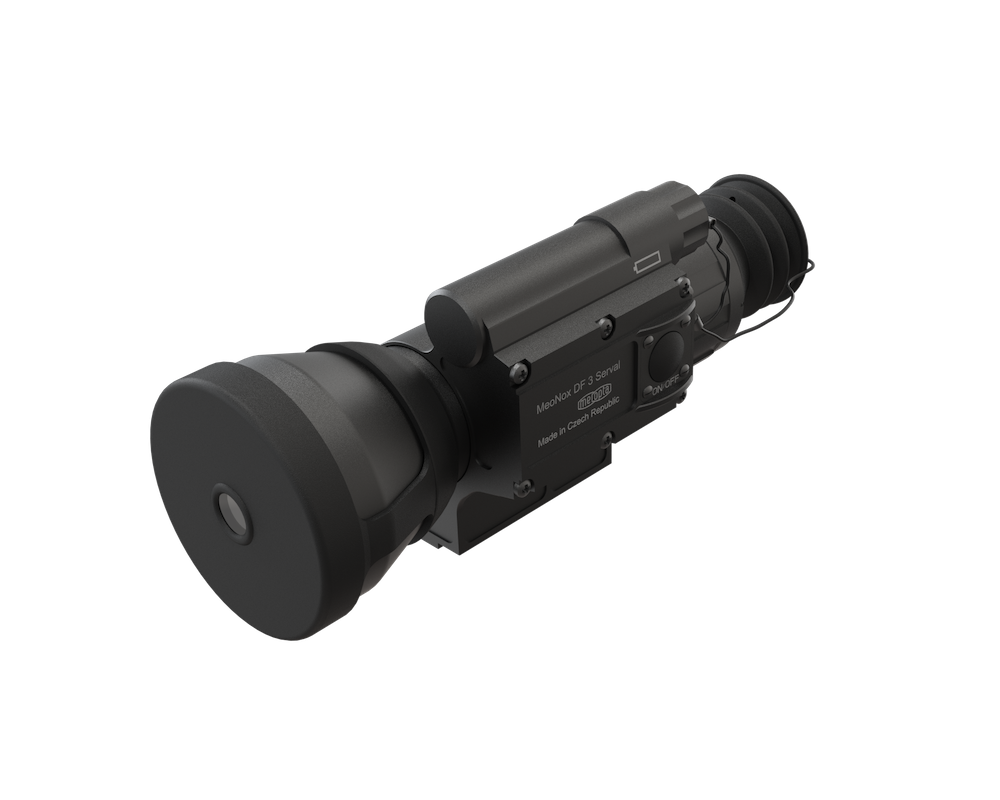

MeoNox DF 3 Serval
Download product sheet: MeoNox DF 3 Serval
A combination of Meopta´s red dot sight ZD-Dot or MeoDot DF 1 and the MeoNox DF 3 Serval brings to life a night vision riflescope for precise and quick target acquisition at a night time. A variety of IITs of all generations along with durability, a compact shape, and an integrated MIL-STD-1913 mounting system with spacers for elevation to a shooter´s most comfortable position, helps you to choose the best option for your mission. Maximal objective lens diameter together with a lightweight design makes the device suitable for any Auto/Semi Auto long barrel firearm or PDW.
Features:
- MeoBright
- MeoDrop
- Shock Resistant
- Waterproof
- Nitrogen Purged
Specifications:
| Magnification | 3x |
| Objective Diameter (mm) | 53 |
| Eye Relief (mm) | 35 |
| Image Intensifier Tube | XD-4, XR5, 4G |
| Resolution (SOA) | ≤60 |
| Field of View (°) | 14 |
| Dioptric Correction (D) | ±4 |
| Focus Range (m) | 80 to infinity |
| Brightness adjustment (S/C) | continuous |
| Recoil Resistance (g) | 500 |
| Human DRI* (m) | 1150/400/200 |
| Power Supply (V) | 3.6 (1xAA) |
| Battery Lifetime (hrs) | min. 72 |
| Automatic Shut Down (Y/N/hrs) | Y/3 |
| Operational Temperature Range (°C) | -40/+60 |
| Storage Temperature Range (°C) | -45/+71 |
| Moisture Resistance [+23/+40 °C] (%) | 80/98 |
| Water Resistance (m/hrs) | 2/2 |
| Dimensions with Mounts and Covers (L x H x W) (mm) | 201 x 107 x 74 |
| Weight (g) | 800 |
